        Taps M4 / ISO2/6H / DIN 371 / HSS-E-PM / TiCN

        Order number
        53640 4.000
        EAN
        4031095246611

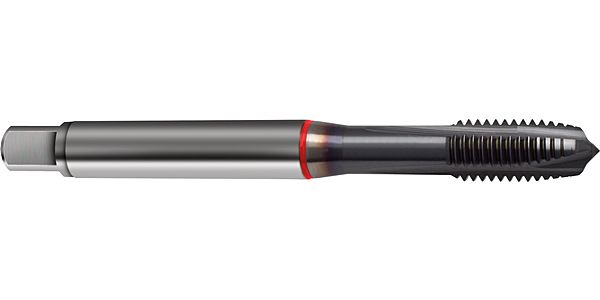

          main product photo
          We are currently improving our cutting data display for you. Please use this link temporarily to access your cutting data.
          Application
          Machine taps for ISO metric threads  M4 / ISO2/6H / DIN 371 / DIN 2184-1 / HSS-E-PM / TiCN / Type: Produktiv H / Form: B / through hole / Cutting direction: right-hand /
          Execution: for through-holes • with spiral point • chip evacuation in feed direction /
          Application: high tensile steels
          P M K N S H
          ISO code

          P Steel, high-alloyed steel
          M Stainless steel
          K Grey cast iron, spher, graphite/mall. cast iron
          N Aluminium and other non-ferrous metals
          S Special, super and titanium alloys
          H Hardened steel and chilled cast iron
          On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
          optimal suitability
          limited suitability
          Details
          Connection code machine side
          straight shank
          Internal cooling
          without
          Norm
          DIN 371
          Surface
          TiCN
          Discount group
          103
          Type
          53640
          Cutting direction
          right-hand
          Type
          Produktiv H
          Material
          HSS-E-PM
          Additional information
          Inner thread
          Form
          B
          Coloured ring
          red ring
          Threads
          M
          Tolerance class thread
          ISO2/6H
          Hole type
          through hole
          Groove
          straight-fluted cutting edges
          Chamfer lead length
          3.5-5,5
          Code no.
          4.000
          Weight
          0.008
          No of cutting edges
          3
          Total length
          63.000
          Thread length
          12.000
          Groove length
          17.000
          Usable length
          21.000
          Norm 2
          DIN 2184-1
          Wrench opening 1
          3.400
          Neck Ø
          3.000
          Core hole Ø
          3.30
          Shank Ø
          4.500
          Nominal dimension thread
          M4
          Pitch
          0.700
          External Ø
          4.050
          Reach length
          43.000
          Statistical goods number
          82074010
          Back to grouped product
          Machine taps for ISO metric threads / Catalog-No.: 53640
