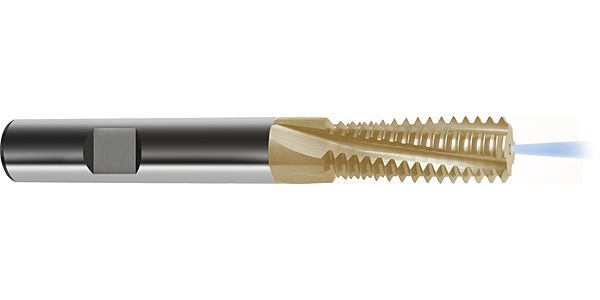

Thread milling cutters M20 / Company std. / Solid carbide / AlTiZrN
-
Connection code machine side: ~DIN 6535-HB -
Internal cooling: with -
Standard: Company std. -
Surface: AlTiZrN -
Cutting direction: right-hand -
Type: TM SP -
Tool material: Solid carbide
SKU
53830 20.000
EAN
4031095257884
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Thread milling cutters M20 / Company std. / Solid carbide / AlTiZrN
Thread milling cutters for ISO metric threads M20 / 2xD / Company std. / Solid carbide / AlTiZrN / Type: TM SP / Cutting direction: right-hand /
Execution: thread milling cutter without chamfer, with spiral flute and internal coolant (axial) • for universal application • for thread depths up to 2xD
Execution: thread milling cutter without chamfer, with spiral flute and internal coolant (axial) • for universal application • for thread depths up to 2xD
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- ~DIN 6535-HB
- Internal cooling
- with
- Norm
- Company std.
- Surface
- AlTiZrN
- Discount group
- 108
- Type
- 53830
- Cutting direction
- right-hand
- Type
- TM SP
- Material
- Solid carbide
- Additional information
- Internal threading
- Threads
- M
- Code no.
- 20.000
- Weight
- 0.020
- No of cutting edges
- 4
- Total length
- 102.000
- Thread length
- 41.300
- Groove length
- 56.000
- Core hole Ø
- 17.50
- Shank Ø
- 16.000
- Nominal dimension thread
- M20
- Pitch
- 2.500
- External Ø
- 14.950
- Shank length
- 60.100
- Holder, machine side
- ~DIN 6535-HB
- Reach length
- 54.000
- Statistical goods number
- 82074010
- Radiuskompensation
- 7.430
