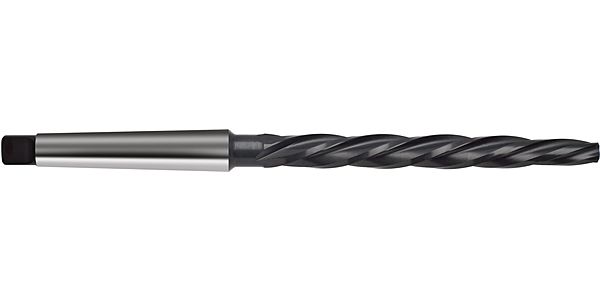

Bridge reamers / Ø 25.000 mm / MK-3 / DIN 311 / HSS / nitrided

  • Connection code machine side: Morse taper
    Connection code machine side: Morse taper
    Connection code machine side: Morse taper
  • Standard: DIN 311
    Standard: DIN 311
    Standard: DIN 311
  • Surface: nitrided
    Surface: nitrided
    Surface: nitrided
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Tool material: HSS
    Tool material: HSS
    Tool material: HSS
  • Groove: left fluted
    Groove: left fluted
    Groove: left fluted
SKU
72680 25.000
EAN
4031095018577
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Bridge reamers / Ø 25.000 mm / MK-3 / DIN 311 / HSS / nitrided
Bridge reamers / Ø 25.000 mm / MK-3 / DIN 311 / HSS / nitrided / Cutting direction: right-hand /
Execution: with long, tapered chamfer lead 1:10 • corrects the hole offset of stacked sheet metal parts to the
required hole -Ø (i. e. to riveting or screwing together) • manufacturing tolerance k11 • with internal centres on both ends • steel fabrication, boiler and tank construction, shipbuilding • tool with high metal removal rate • also for slow running hand drilling machines • for tensile strengths up to a max. 1000 N/mm²
Connection code machine side
Morse taper
Internal cooling
without
Norm
DIN 311
Surface
nitrided
Discount group
105
Type
72680
Cutting direction
right-hand
Material
HSS
Additional information
Taper 1:10
Groove
left fluted
Code no.
25.000
Weight
0.893
No of cutting edges
5
Total length
296.000
Groove length
182.000
Usable length
197.000
Nominal Ø mm
25.000
Holder, machine side
MK-3
Cutting edge length
180.000
Reach length
202.000
Smallest Ø
17.800
Corner chamfer
72.000
Groove 2 length
180.000
Statistical goods number
82076030
    Bridge reamers / Catalogue-No.: 72680
