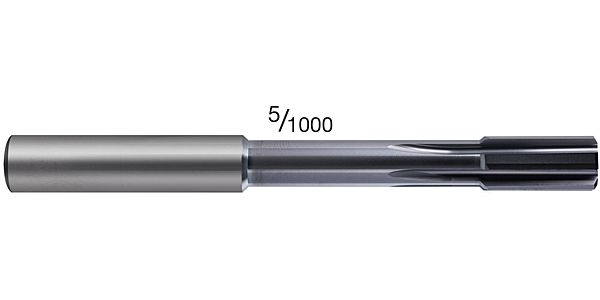

Machine reamers / Ø 2.990 mm / +0.005 / Company std. / Solid carbide
-
Connection code machine side: DIN 6535-HA -
Tolerance on Ø: +0.005 -
Internal cooling: Axialkühlung -
Standard: Company std. -
Surface: AlTiN nano -
Cutting direction: right-hand -
Type: SuperR-HS-S -
Tool material: Solid carbide -
Groove: straight-fluted cutting edges -
Spacing: EU
SKU
72872 2.990
EAN
4031095257624
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Machine reamers / Ø 2.990 mm / +0.005 / Company std. / Solid carbide
Machine reamers / Ø 2.990 mm / Tolerance zone: +0.005 / Company std. / Solid carbide / AlTiN nano / Type: SuperR-HS-S / Cutting direction: right-hand /
Execution: with axial coolant duct, for reaming blind holes • for highest cutting rates and exceptional hole quality • straight flutes, with extremely unequal flute spacing • straight shank tol. h6 for clamping in hydraulic chucks and shrink fit chucks • considerable process cost saving potential
Execution: with axial coolant duct, for reaming blind holes • for highest cutting rates and exceptional hole quality • straight flutes, with extremely unequal flute spacing • straight shank tol. h6 for clamping in hydraulic chucks and shrink fit chucks • considerable process cost saving potential
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- DIN 6535-HA
- Tolerance on Ø
- +0.005
- Internal cooling
- Axialkühlung
- Norm
- Company std.
- Surface
- AlTiN nano
- Discount group
- 166
- Type
- 72872
- Cutting direction
- right-hand
- Type
- SuperR-HS-S
- Material
- Solid carbide
- Groove
- straight-fluted cutting edges
- Spacing
- EU
- Code no.
- 2.990
- Weight
- 0.003
- No of cutting edges
- 4
- Total length
- 68.000
- Usable length
- 40.000
- Neck Ø
- 2.400
- Shank Ø
- 4.000
- Nominal Ø mm
- 2.990
- Cutting edge length
- 12.000
- Reach length
- 40.000
- Smallest Ø
- 2.990
- Statistical goods number
- 82076030
