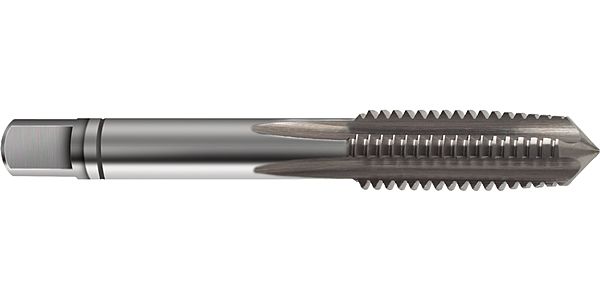

Hand taps, first tap M8 / ISO2/6H / DIN 352 / HSS / bright
-
Connection code machine side: straight shank -
Internal cooling: without -
Standard: DIN 352 -
Surface: bright -
Cutting direction: left-hand -
Type: N-LH -
Tool material: HSS -
Form: A -
Tolerance field: ISO2/6H -
Hole type: through-, blind hole -
Groove: straight-fluted cutting edges
SKU
73105 8.000
EAN
4031095077192
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Hand taps, first tap M8 / ISO2/6H / DIN 352 / HSS / bright
First tap Hand taps for ISO metric threads M8 / ISO2/6H / DIN 352 / DIN 2184-2 / HSS / bright / Type: N-LH / Form: A / through-, blind hole / Cutting direction: left-hand
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- straight shank
- Internal cooling
- without
- Norm
- DIN 352
- Surface
- bright
- Discount group
- 118
- Type
- 73105
- Cutting direction
- left-hand
- Type
- N-LH
- Material
- HSS
- Additional information
- First tap
- Form
- A
- Threads
- M
- Tolerance class thread
- ISO2/6H
- Hole type
- through-, blind hole
- Groove
- straight-fluted cutting edges
- Chamfer lead length
- 6-8
- Code no.
- 8.000
- Weight
- 0.016
- No of cutting edges
- 4
- Total length
- 63.000
- Thread length
- 17.000
- Groove length
- 28.000
- Norm 2
- DIN 2184-2
- Wrench opening 1
- 4.900
- Core hole Ø
- 6.80
- Shank Ø
- 6.000
- Nominal dimension thread
- M8
- Pitch
- 1.250
- External Ø
- 7.500
- Statistical goods number
- 82074010
