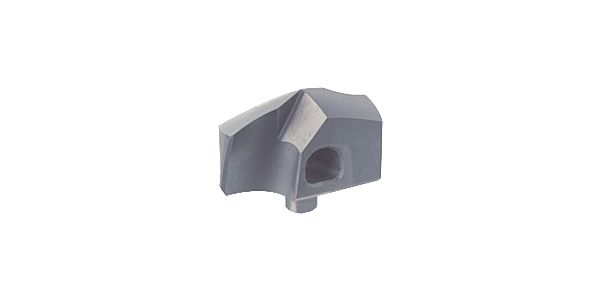

Interchangeable inserts Solid carbide / Ø 31.750 mm / h7 / Company std. / bright

  • Ø-Thinning: 1.000
    Ø-Thinning: 1.000
    Ø-Thinning: 1.000
  • Tolerance on Ø: h7
    Tolerance on Ø: h7
    Tolerance on Ø: h7
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
  • Surface: bright
    Surface: bright
    Surface: bright
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Point angle: 140
    Point angle: 140
    Point angle: 140
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
SKU
77012 31.750
EAN
4031095254296
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Interchangeable inserts Solid carbide / Ø 31.750 mm / h7 / Company std. / bright
SuperV-AP mini tool holders Solid carbide / Ø 31.750 mm h7 / Company std. / Surface: bright / Type: SuperV-AP mini Al / Cutting direction: right-hand / relieved cone 140°
Execution: Web thinning ≥ Ø 11.000 mm • relieved cone • main cutting edge form concave • Torx screws catalogue no. 77020 included
 Application: aluminium and Al alloys • non-ferrous metals
Point grinding
relieved cone
Ø-Thinning
11.000
Nominal Ø tolerance field
h7
Internal cooling
without
Norm
Company std.
Surface
bright
Discount group
141
Type
77012
Cutting direction
right-hand
Type
SuperV-AP mini AL
Point angle
140
Material
Solid carbide
Code no.
31.750
Weight
0.214
No of cutting edges
2
Total length
26.400
Nominal Ø mm
31.750
Nominal Ø fractional
1 1/4
Size
315
Reach length
22.300
Tip length
5.800
Thickness
14.000
Statistical goods number
82090020
    SuperV-AP mini tool holders / Catalogue-No.: 77012
