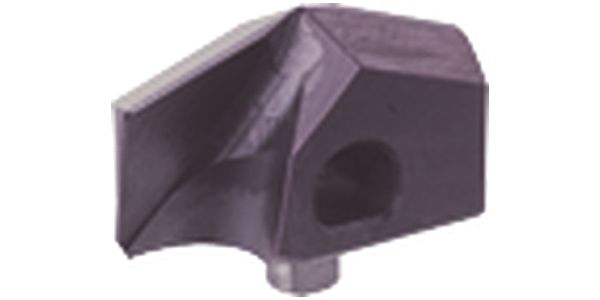

Interchangeable inserts Solid carbide / Ø 12.800 mm / h7 / Company std.

  • Ø-Thinning: 1.000
    Ø-Thinning: 1.000
    Ø-Thinning: 1.000
  • Tolerance on Ø: h7
    Tolerance on Ø: h7
    Tolerance on Ø: h7
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
  • Surface: TiAlN nano
    Surface: TiAlN nano
    Surface: TiAlN nano
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: SuperV-AP mini U
    Type: SuperV-AP mini U
    Type: SuperV-AP mini U
  • Point angle: 140
    Point angle: 140
    Point angle: 140
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
SKU
67011 12.800
EAN
4031095197784
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Interchangeable inserts Solid carbide / Ø 12.800 mm / h7 / Company std.
SuperV-AP mini tool holders Solid carbide / Ø 12.800 mm h7 / Company std. / Surface: TiAlN nano / Type: SuperV-AP mini U / Cutting direction: right-hand / facet point grinding 140°
Execution: Web thinning ≥ Ø 11.000 mm • facet point grind • main cutting edge form straight (after correction) • Torx screws catalogue no. 77020 included
 Application: structural and case hardened steels
Point grinding
facet point grinding
Ø-Thinning
11.000
Nominal Ø tolerance field
h7
Internal cooling
without
Norm
Company std.
Surface
TiAlN nano
Discount group
141
Type
67011
Cutting direction
right-hand
Type
SuperV-AP mini U
Point angle
140
Material
Solid carbide
Code no.
12.800
Weight
0.015
No of cutting edges
2
Total length
9.800
Nominal Ø mm
12.800
Size
125
Reach length
7.700
Tip length
2.400
Thickness
5.000
Statistical goods number
82090020
    SuperV-AP mini tool holders / Catalogue-No.: 67011
